Sound Card Oscilloscope Book Image Gallery - Calibrator

Back to the Book Home

Sound Card Oscilloscope Probe
Calibrator

The finished calibrator and signal generator.

Click for larger image

Layout showing track breaks and connections. Vieed from the component side.

Click for larger image

Completed circuit board.

Click for larger image

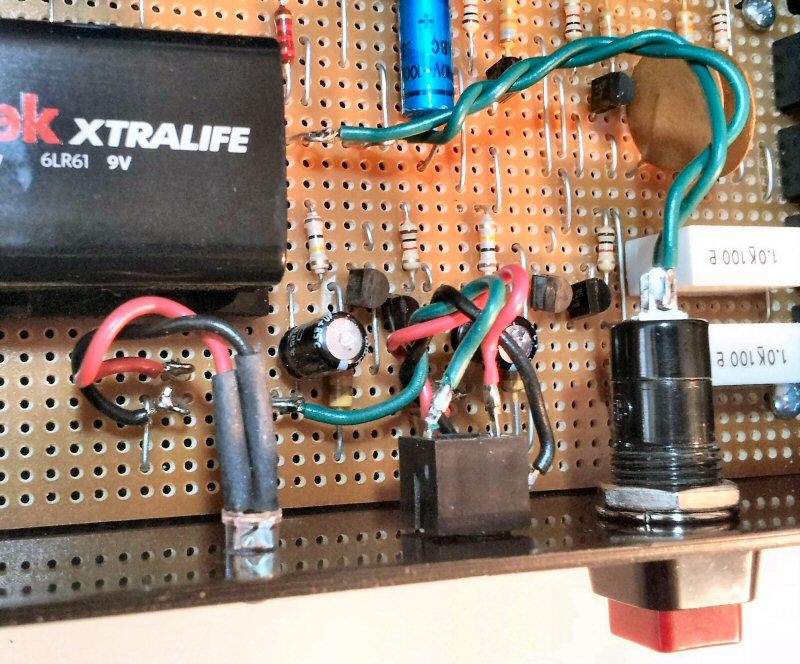

Panel wiring.

Click for larger image

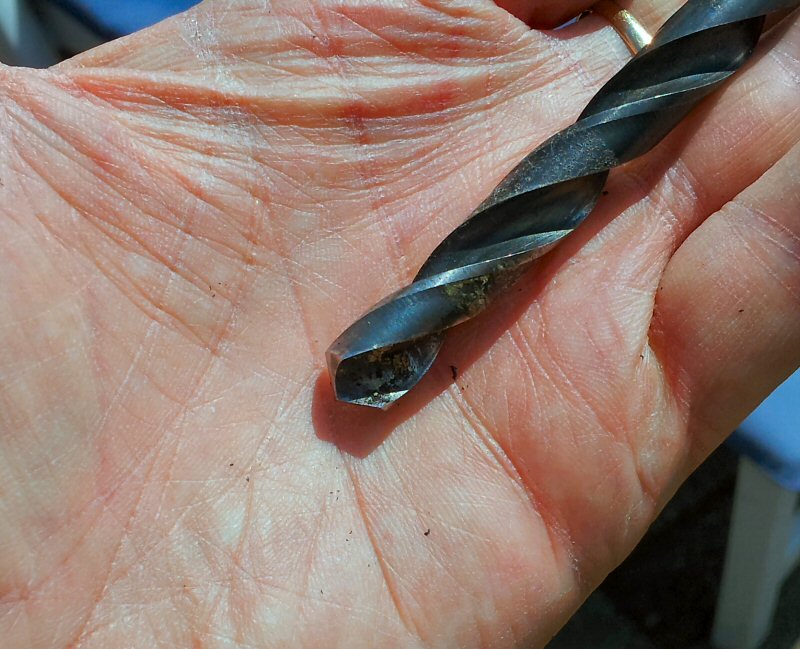

Large high speed twist drill bit used for deburring.

Click for larger image

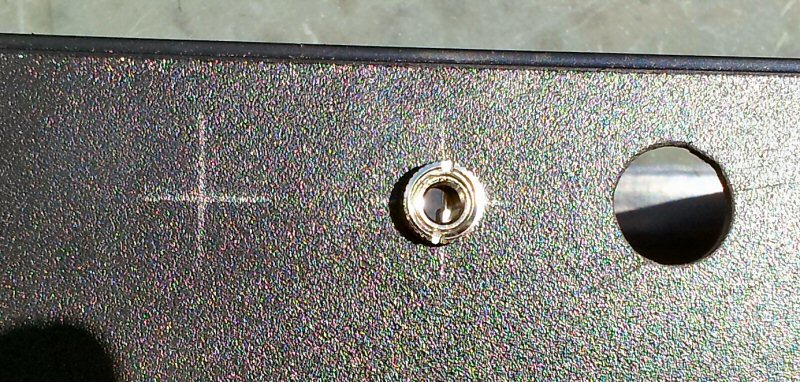

3.5mm Jack socket fitted to enclosure wall.

Click for larger image

Holes for the output leads and hooks drilled.

Click for larger image

A very quick and simple label

Click for larger image

Drawing for output holes.

Click for larger image

Drawing for preset calibration voltage access.

Click for larger image

Drawing showing positions of LED, jack socket and on-off switch.

Click for larger image

Positions marked for output holes.

Click for larger image

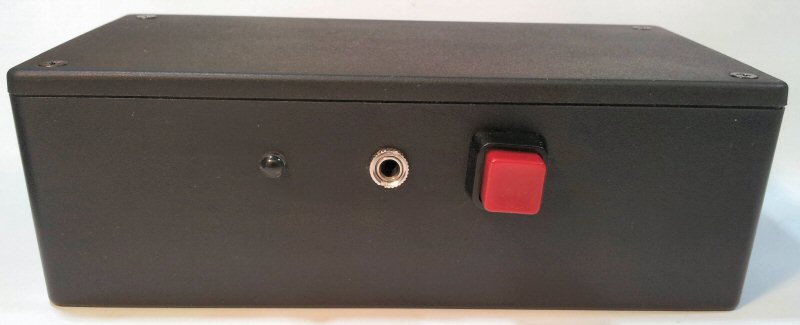

LED, Jack socket and on-off switch.

Click for larger image

Mark and drill holes for panel equipment.

Click for larger image

On-off switch mounted in panel.

Click for larger image

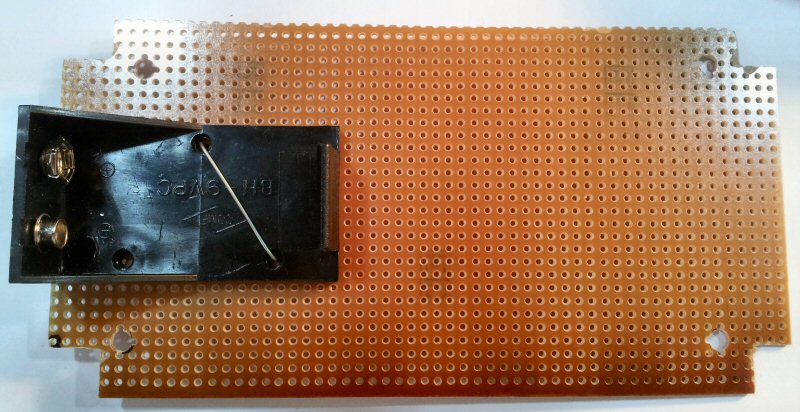

Bare board cut to size.

Click for larger image

Brad point drill bit works well for ABS platic work.

Click for larger image

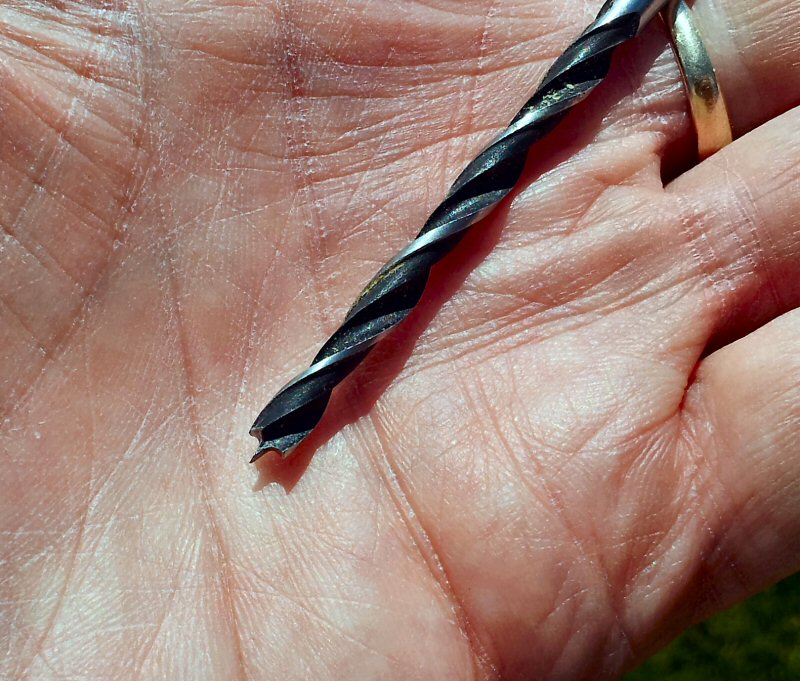

6mm brad-point drill bit.

Click for larger image

Battery holder.

Click for larger image

External connecting board showing leads for connection to internal connecting block.

Click for larger image

Multimeter probes lodged in output loops or hooks.

Click for larger image

18 guage copper wire fashioned into a loop or hook for expernal connections.

Click for larger image

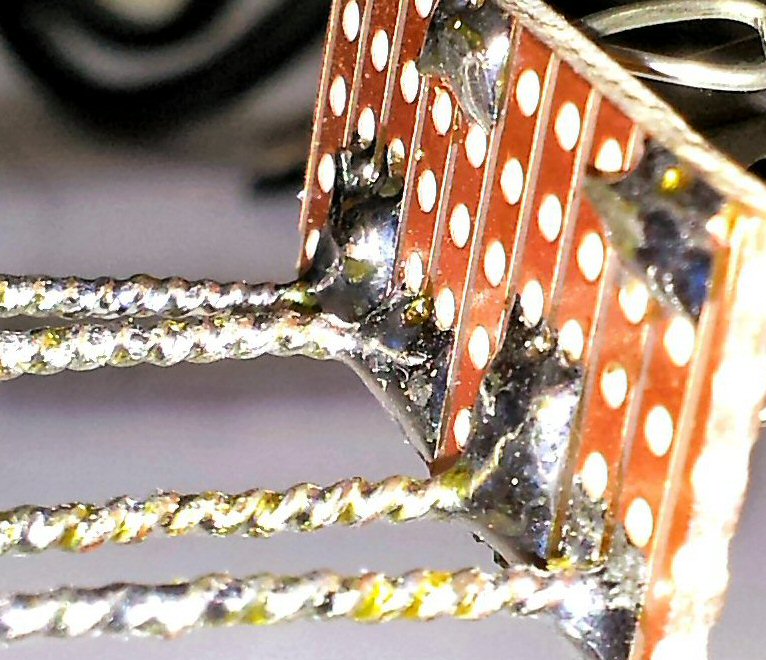

External connecting board link side.
