PC Sound Card Oscilloscope Parts List

Stuff you need for your PC Oscilloscope

PC oscilloscope probe circuit board

I have tried to list everything that you might need to build your PC scope probe. I made mine out of parts that I found in my junk box so some of the components that are listed may not look the same as in the photos. This should not be a problem as there are many ways to build any circuit.

Find out how to build an even better PC based scope in my book: Sound Card Oscilloscope - Build Better Electronic Projects

If you want to buy an inexpensive yet usable PC based oscilloscope that will do more than the one in this project then try the Hantek 6022BE USB scope. It isn't perfect but it is incredible value for money and great for the hobbyist or anyone that has need for a small portable scope.

The problem with buying electronic components on line is that it can be difficult to get one or two items at an economical price due to the shipping costs so I have concentrated on looking for sets of components that provide good value instead.

You will likely end up with a few components that you do not need for this project alone but you will start to build up a stock of bits and pieces that you will find useful for your next projects. If you were wondering why it is that I have a junk box full of components then this is the reason why.

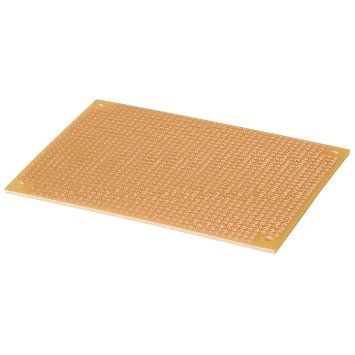

Perforated PC Board

The board I used for this project had no copper on either side of the board. You can use board with copper pads around each individual hole and it will work just as well.

Cut the board to size using a small saw.

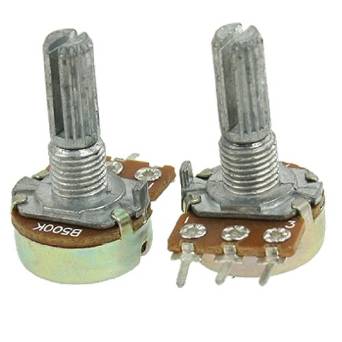

500k (470k) Linear Potentiometers

VR1, VR2

These variable pots can be mounted on your perforated board to provide convenient adjustment knobs. I found a couple of large 470k Ohm trimpots in my junk box so I used them to build my scope probe instead of ordering some of the ones in the picture. My board will look a little different to yours for that reason.

Cut the board to size using a small saw.

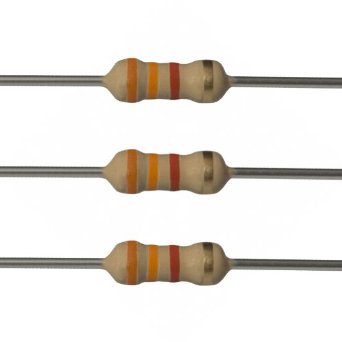

3.3k Ohm Resistors

R1, R2

You can either purchase a number of 3.3k Ohm resistors or you can stock up with a range of resistors by buying a kit of resistors.

Silicon Diodes

D1, D2, D3, D4

You can use almost any silicon diode. I used a 1N4148 signal diode that I happened to have to hand.

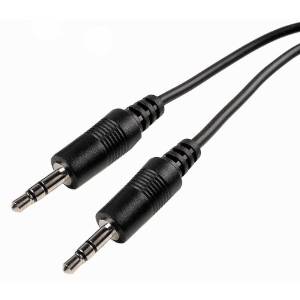

Probe Cable to PC

It wasn't until I had made up a cable by hand that I realised that I could have used one of these leads that I had in my box. You can simply cut the plug off one end and solder it into your probe circuit. No need to wire up a jack for the other end Duh!

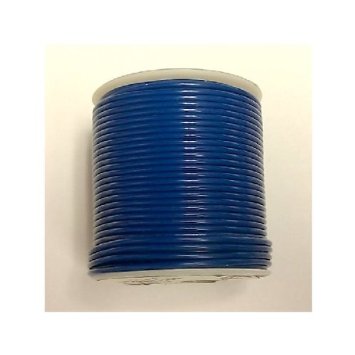

Hookup wire

I have a reel of bare 21 AWG (22(SWG) solid copper wire which I tend to use for short hook ups. Insulated solid hook up wire will do the same job for you and allow you to use greater lengths without fear of touching the wire to other links or components and causing a short circuit. Just cut to length and strip the insulation from the ends.

Probe clips

These clips can be very delicate but if you are careful then they do the job of clipping onto tiny wires carrying signals you want to measure very well.



Now subscribe to our newsletter and don't miss a thing




Comments (45)

Topic: How To Make A Free Sound Card PC Oscilloscope
Full StarFull StarFull StarFull StarFull Star 5/5 (19)
Facebookdel.icio.usStumbleUponDiggGoogle+Twitter
Aidan (US) says...
can it handle ac current
2nd December 2017 5:15pm
Full StarFull StarFull StarFull StarEmpty Star
venturini patrick (France) says...
SmileHello Thanks for your video . Beccause , befor having enough money tu by a osciloscope , i will try to build the litlle osciloscope .
But cant find the link ( lin adress ? ) tocharge on the computer ( for simulating the 2 channels of a osciloscope ).?
Could you answersto my mail adress ?
Thank
Your
Bes t regards
Patrick Montpellier France
4th September 2017 9:12pm
Novalar says...
Good article!
22nd August 2017 8:40pm
Novalar says...
Thanks! I used this to measure a laser driver stability when switching the current, I was able to see the switch spikes perfectly!
22nd August 2017 7:57am
Dan (US) says...
Can the scope described in the book work with a Linux based software?
30th June 2017 9:05pm
Full StarFull StarFull StarFull StarFull Star
Sam (India) says...
Hi, this is an amazing idea and this is going to save me a lot of money. I have not yet built this circuit. I have a few questions to get cleared.
1. To which port of my do I connect the output probe to? headphones or microphone or line-in?
2. For my experiments, I may have to operate around a voltage of 15 to 22 volts. Will this pose a threat to my sound card?
9th April 2016 7:33am
Full StarFull StarFull StarFull StarFull Star
Dave (Australia) says...
Hi, thanks for sharing this build, it's great.
I want to make this oscilloscope to test sensors and wiring on my car, but the cars voltage is between 12v and 14.4v.
Will this work for me?
Or, are there any changes that I can make to the design so that it will cater to my needs?

Thank you. Smile
1st April 2016 10:20am
Steve says...
Hi Dave,

Yes this should work fine providing that you stay well away from the high voltage part of the engine. That will be the spark plugs and induction coil etc. It should work ok for sensors that are likely to be 12v powered. Always Test the signals with a multimeter first. Test for DC voltage and AC voltage and do not use the scope on anything over 30v.

Steve
5th April 2016 9:15am
David Schroeder (US) says...
Is it possible to store a single sweep with this system? Currently I have a Textronix 465B scope, and my experiment setup entails a single sweep for each run, triggered by a specially timed pulse. It's hard to analyze any detail as the image on the screen is so transient. Being able to capture a single sweep and continuously display it would be really useful.
21st January 2016 10:14pm
Steve (UK) says...
Hi David,

I do believe that you can store a single sweep. You can set it for single sweep and get it to trigger somewhere of interest.

Steve
31st January 2016 1:44pm
David Schroeder (US) says...
Is it possible to store a single sweep with this system? Currently I have a Textronix 465B scope, and my experiment setup entails a single sweep for each run, triggered by a specially timed pulse. It's hard to analyze any detail as the image on the screen is so transient. Being able to capture a single sweep and continuously display it would be really useful.
21st January 2016 10:14pm
David Schroeder (US) says...
Is it possible to store a single sweep with this system? Right now I have a Textronix 465B scope, and my experiment setup entails a single sweep for each run triggered by a specially timed pulse. Currently it's hard to analyze detail as image on the screen is so transient. Being able to capture a single sweep and continuously display it would make it really convenient.
21st January 2016 10:09pm
Full StarFull StarFull StarFull StarFull Star
Keerthana (India) says...
can we implement a phase locked loop using sound card
12th December 2015 4:12pm
Steve (UK) says...
Hi Keerthana,

In theory you could build a phase locked loop by adjusting the output waveform from the headphone socket in real time depending on the waveform input through the microphone input.

I'm not aware of any PLL software for the pc so you would need to write some code to do it. This is way beyond the scope of this article unfortunately.

Steve
12th December 2015 5:26pm
adil (India) says...
instead of pc can i use android based cell phone(smart phones)... you find many app in play store can this circuit support any one can help me out!!
17th November 2015 2:19pm
Full StarFull StarFull StarFull StarFull Star
adil (India) says...
instead of pc can i use android based cell phone(smart phones)... you find many app in play store can this circuit support any one can help me out!!
17th November 2015 2:17pm
Full StarFull StarFull StarFull StarFull Star
Saurabh (India) says...
Hi Steve :)
Can I use the above PC Sound Card based oscilloscope to display the ECHO & TRIG waves of an Ultrasonic Sensor Module(HC SR-04) ?
I see under your other project(s) on this website you are using HC SR-04; So I assume that you are better aware of the details for the same.

Regards,
Saurabh
29th August 2015 1:21pm
Steve (UK) says...
Hi Saurabh, The trigger pulse of the HC SR-04 is a minimum of 10 micro seconds which will not be easy to see with the sound card oscilloscope with a maximum bandwidth of 20kHz. However the trigger pulse doesn't have to be that fast. I used a trigger pulse of 50us in the project that I published on the site. At 50 micro seconds the pulse is just detectable by the scope. It won't look very square of course but you can detect it's presence which is usually what you want to see. You ... Read More
29th August 2015 5:44pm
Full StarFull StarFull StarFull StarFull Star
Pokke (US) says...
I just made a scope semi following your schematic from the book but used electrolytic 1uf caps and a 5k pot.
it seems to work right. I have been meaning to ask what the difference is between the poly box ones you use and the ones I used.
still much to learn, but having a great time with your book so far. now on to building the cali/generator. thanks Steve
29th June 2015 10:32pm
Steve (UK) says...
Hi Pokke, Using an electrolytic input capacitor is not a good idea. Worst case the capacitor could explode if you apply voltage in the wrong direction. It is more than possible that you will be applying AC signals to the probe that swing both '+ve' and '-ve' which may cause the capacitor to malfunction. Electrolytic capacitors work best when there is a DC bias across them. The terminal marked with a '+' should always be positive with respect to the '-ve' end. ... Read More
4th July 2015 2:29pm
Full StarFull StarFull StarFull StarFull Star
Don Burke (US) says...
Could you clarify a few things? I was looking at the one that Make did that is a copy except for the values and yours. There are 3 wires for the input and 3 for the output. So one is common on the input and one on the output. Your diagram shows 4 inputs and 3 outputs. on the input, I am guessing the v1- and v2- are the common ground. On the output, I am guessing the same is true, v1- and v2- are common ground and the v1+ and v2+ are separate on the plug to the sound card. Which pin on the ... Read More
24th May 2015 3:37am
Full StarFull StarFull StarFull StarFull Star
mike baker (UK) says...
Hi Steve,

Would this be suitable for reading a signal going to a moped tachometer?

The cable is wrapped around the spark plug wire.

Many thanks,

Mike
30th April 2015 9:52am
Steve (UK) says...
Sorry for the delay in replying. Auto ignition systems generate many thousands of volts and even one turn of wire around the ignition lead could induce very high voltages. For this reason I would say do not attempt this unless you are very confident that you know what you are doing. Worst case you could damage both the probe and your PC.

Steve
4th July 2015 2:13pm
João Alves (Portugal) says...
Hi Steve!

Unfortunately Amazon tells me that your book is not available for my country (Portugal).

I wonder if there is any other way to get it.

Thank you.
7th April 2015 8:30am
Steve (UK) says...
Hi João,

I'm very sorry that you are having a problem. Having just done a little research there appears to be some kind of copyright issue going on with Amazon purchases of ebooks in Portugal. I have no idea what it could be.

Some people have had success by buying from the amazon. com or . co. uk sites. You might want to try that. If you still have a problem then send me a message using the contact form (link at the bottom of this page) and I will see what I can do to help.

Regards
Steve
7th April 2015 9:34am
Full StarFull StarFull StarFull StarFull Star
sameh (Egypt) says...
its realy use ful thank you but i want to know the kind of the wire we use it to take the signal into the pc and its the most famous kind of it
20th February 2015 2:30am
Full StarFull StarFull StarFull StarFull Star
Marut (India) says...
Thank you so much Steve. It is amazingly precise and easy to follow.

I also have a question. You mentioned that it limits op voltage to 500mV. I was planning to use your arrangement for showing the output of an ECG circuit which amplifies heart signal to around 5V at the output. So shall my 5V output signal get distorted if I use your circuit arrangement?

Love and regards from India...
3rd August 2014 2:21pm
Steve (UK) says...
Hi Marut,

Yes you can use it to measure voltages up to about 30V with no problems. The input is attenuated and then clipped to a safe level for passing to the microphone input. Have you built the circuit in this article or did you use my Kindle book?

Regards
Steve
3rd August 2014 2:47pm
Marut (India) says...
I have used your above article to get an idea about this amazing concept. I am aware of your book on Kindle as well. Hope I can get my PQRST waveform on the PC screen through your circuit.

I was worried that I didn't have an oscilloscope at my disposal. I needed to rely on my college lab for that. Now your post has given me a real boost.Smile
3rd August 2014 3:45pm
Steve (UK) says...
Be aware that the lower frequency limit of the sound card is not much less than 20Hz. This may just be low enough to capture a heart beat but you will need to experiment with that.
3rd August 2014 4:10pm
Marut (India) says...
Roger that Smile
3rd August 2014 4:30pm
Full StarFull StarFull StarFull StarFull Star
Alessandro (Brazil) says...
Thanks! I used this to measure a laser driver stability when switching the current, I was able to see the switch spikes perfectly!
1st August 2014 11:01pm
Steve (UK) says...
Hi Alessandro, I'm pleased that you liked the project. I think that it's a great addition to anyone's tool kit. You might like to know that I've recently published a Kindle book entitled "Sound Card Oscilloscope: Build Better Electronics Circuits". It is far more comprehensive and shows you how to put it into a neat enclosure to make a permanent job of it. The book also covers building a calibrator to allow absolute amplitude measurements and a signal generator output ... Read More
1st August 2014 11:29pm
Full StarFull StarFull StarFull StarEmpty Star
mahmoud (Jordon) says...
thanks
30th July 2014 1:37am
Full StarFull StarFull StarFull StarFull Star
Narendra .K.C (India) says...
i am very grateful to you
27th July 2014 5:22pm
Full StarFull StarFull StarFull StarFull Star
beppe devercelli (Italy) says...
Really useful and comprehensive.
Thank youGrin
24th July 2014 5:55am
Full StarFull StarFull StarFull StarEmpty Star
CT (India) says...
great project! works great
i have a doubt though

How and why are we selecting a 3.3 k ohm and a 470k pot?
19th May 2014 12:07pm
Steve (UK) says...
Hi CT, The input resistor and potentiometer were chosen to provide maximum sensitivity and a degree of overload protection. The small 3.3k ohm resistor limits the current through the protection diodes to about 10mA max. with input signals up to 30V. The 470k ohm pot allows for small signals to be displayed while providing a higher input impedance with larger inputs. I'm currently trying out an alternative arrangement using a 470k ohm fixed input resistor and a 4.7k ohm potentiometer. This ... Read More
19th May 2014 4:34pm
CT (India) says...
oh Ok... got you point. Grin
another point that i was wondering about is how does the two zener diodes work.

P.S. im a noob in electronics :PSad
19th May 2014 4:56pm
Steve (UK) says...
The diodes are just ordinary diodes not zeners. I'm making use of the fact that if you forward bias a diode with a small voltage less than about 0.5-0.6v it will not conduct but if you increase the voltage then it conducts so hard that it will not allow the voltage to rise above 0.5-0.6v unless it burns up with excessive current. Connecting the diodes back to back prevents the AC signal amplitude from going more than plus or minus 0.5-0.6v. The objective is to protect the microphone input ... Read More
19th May 2014 5:31pm
Full StarFull StarFull StarFull StarFull Star
richard bromberg (US) says...
this question is about the oscilloscope leads.
What is a 3K3 resistor, do you mean a
3K Ohm resistor. excellent article
26th February 2014 1:32pm
Steve (UK) says...
Hi Richard,

A 3K3 resistor is just another way of saying 3.3K Ohms resistor. It's a kind of shorthand. Both types of notation is used widely and probably a few others.
26th February 2014 2:18pm
Ed Hahn (US) says...
3K3 means 3.3k
21st June 2014 9:11pm
Full StarFull StarFull StarFull StarFull Star
Steve (UK) says...
I used signal diodes with a fast switching characteristic capable of conducting 200mA. Diodes with a higher maximum forward current would give more protection.
17th February 2014 12:54am
Full StarFull StarFull StarFull StarEmpty Star
xavier (France) says...
Hello, thank you for sharing, what are the characteristics of D1 to D4 diodes ?
13th February 2014 2:18pm
