	Arduino Uno Single Board Microcontroller A computer on a board with everything you need to start running programs and interfacing with the real world. Includes CPU, flash, EEPROM and static RAM memory,digital and analog I/O, timers and more.

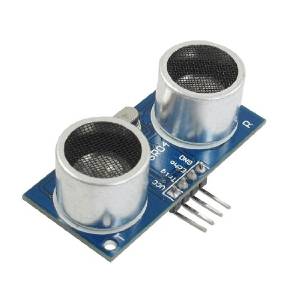

	Ultrasonic Module HC-SR04 Distance Sensor For Arduino Ultrasonic transmitter and receiver. Operates by sending out ultrasonic pulses of sound and measuring the time it takes to receive an echo.

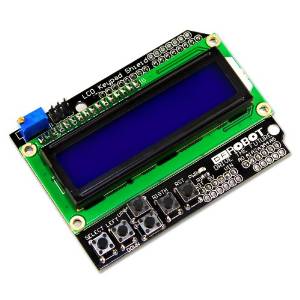

	1602 Keypad LCD module Plug in LCD and Keypad shield for the Arduino Uno. Provides 2 lines of 16 characters on a backlit LCD display plus 6 small key switches that are easily accessible from software.

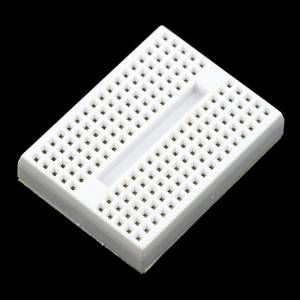

	Mini Solderless BreadBoard A 170 point mini breadboard is perfect for this project
	Hook-Up Jumber Cable Wires You can make these yourself with some flexible wire, solid copper wire and heat shrink sleeving if you can be bothered to spend the time soldering them all up. Why not make your life easier and buy a fistfull instead. They are not expensive.

Arduino Distance Sensor How to Build

Arduino Distance Sensor Software Sketch

<< Previous First 2 Last Next >>

Now subscribe to our newsletter and don't miss a thing

Tagged: Arduino Distance Sensor Arduino Arduino Uno Arduino Timer Interrupts Range Finder Ultrasonic Distance Measurement HC SR04
