Sound Card Oscilloscope Book Image Gallery - Oscilloscope Probe

The final product in it's enclosure with the lid screwed on.

Click for larger image

Completed Sound Card Oscilloscope showing a sleeved link bypassing the top right screw which disrupted an adjacent track.

Click for larger image

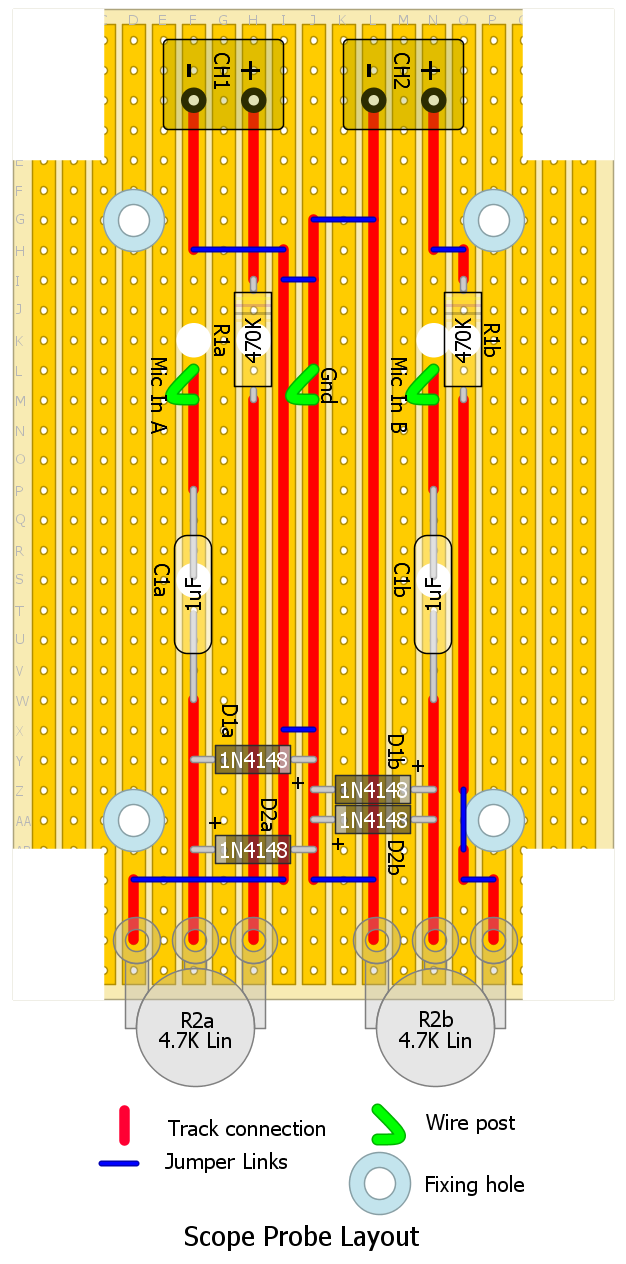

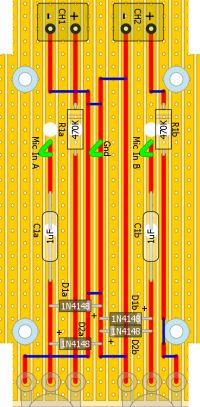

Track layout

Click for larger image

Track side of the board with all connections soldered.

Click for larger image

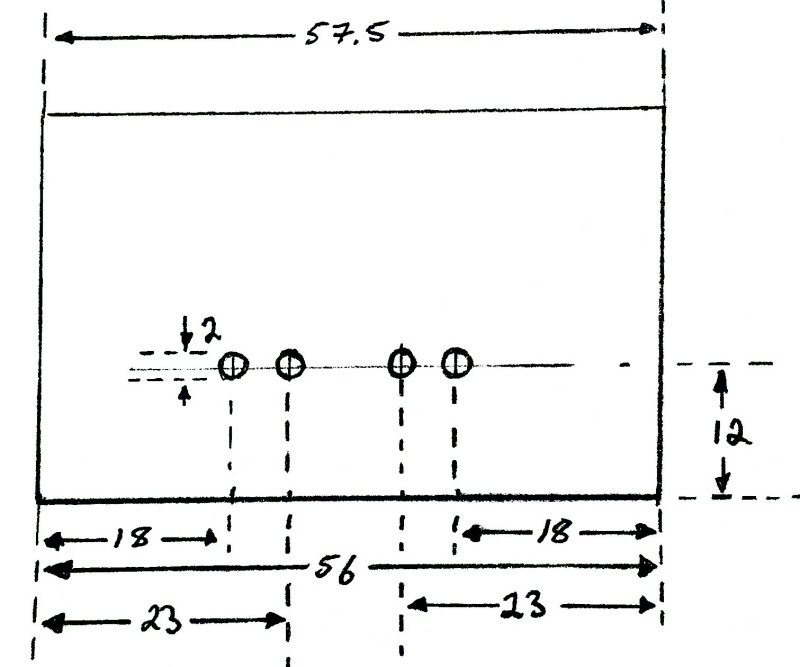

Drawing showing positions of the probe leadss.

Click for larger image

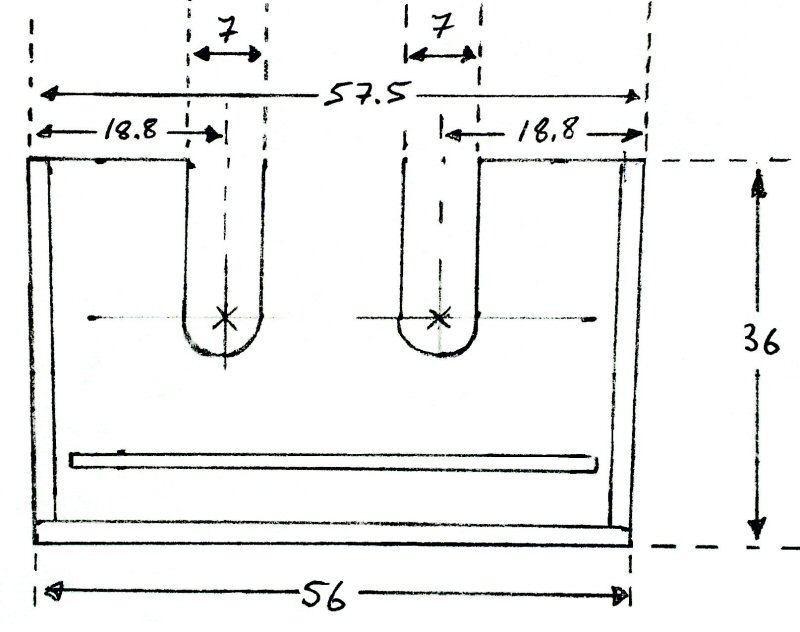

Drawing of the potentiometer side of the enclosure.

Click for larger image

Two of the four holes drilled ready for the proble leads to pass through to the connecting blocks mounted on the board.

Click for larger image

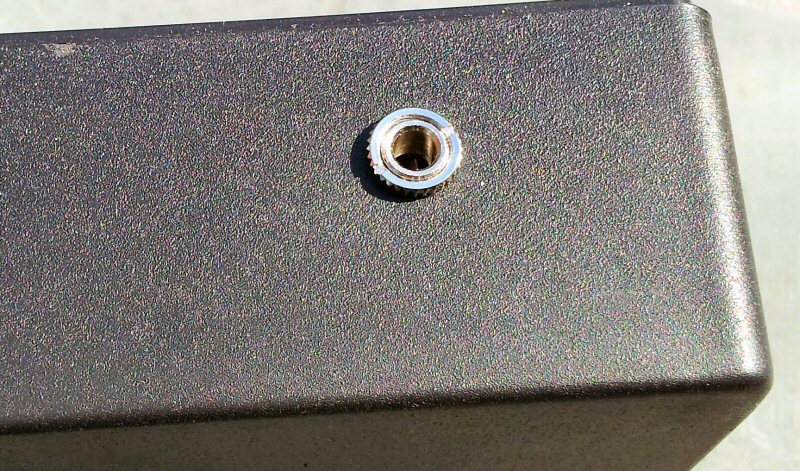

The 3.5mm stereo jack socket is mounted on the side wall of the enclosure.

Click for larger image

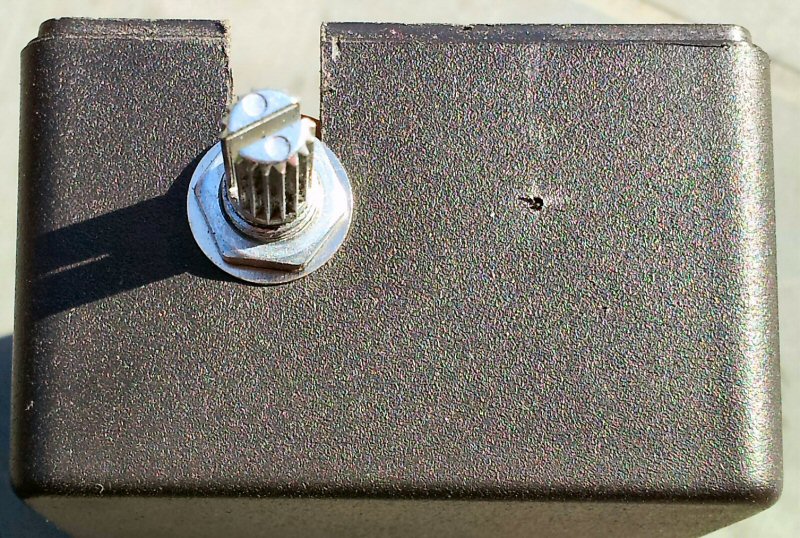

The board mounted potentiometers slide into place and are fixed with the locking nut of the shaft. The knob is then push-fitted to the splines potentiometer shaft.

Click for larger image

First drill a hole where the potentiometer shafts will come through the wall of the enclosure then use a small hacksaw to cut a slot verticaly the same width as the shaft.

Click for larger image

Removing the locating tag from the potentiometer.

Click for larger image

When assembling the completed probe slide the potentiometers into their slots and tighten the locking screws.

Click for larger image

The finished Sound Card Oscilloscope probe stacked on top of the calibrator unit.

Click for larger image
