Parts List For The Sound Card Oscilloscope and Calibrator

Back to the Sound Card Oscilloscope home page

There are no unusual or expensive components used in either the sound card probe or the calibrator project so you can source the parts from a variety of places. There are many online suppliers which I shall mention later and I will list the items and part numbers used by RapidOnline in the UK where I live. I will also try to list suitable parts from Amazon as they pretty much have everything and it's very easy to order from.

Sound Card Probe Parts List

Amazon Item	Qty
	1 3.5mm Stereo miniature jack socket

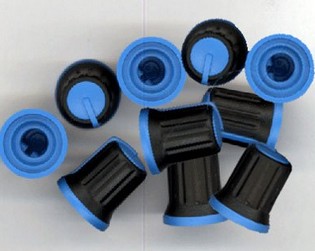

	2 Knob Push Fit Spline Shaft 6mm
	1 Hammond 1591XXLBK FRABS Enclosure 87 x 57 x 39mm Black
	4 Self-Tapping Screws No.4 6.5mm
	1 Stripboard
	2 2-Way PCB Screw Terminal Block 5.0mm
	2 470k Resistor
	2 4K7 Linear Potentiometer
	4 1n4148 Signal Diode 75v 150ma
	2 1uF capacitor
	4 Miniature Probe
	1 Stranded Equipment Wire
	1 Single Core Wire
	1 3.5mm Stereo Plug to Plug Lead

Rapid Item	Qty	Rapid Code	Cost
3.5mm Stereo miniature jack socket	1	20-0133	£0.22
Cliff K87MBR Black Soft Touch Knob Push Fit Spline Shaft 6mm	2	32-1822	£0.56
Hammond 1591XXLBK FRABS Enclosure 87 x 57 x 39mm Black	1	30-1835	£2.74
Fixer Pozi Pan Head Self-Tapping Screws No.4 6.5mm - Pack Of 100	4	33-3150	£1.88
Stripboard 64 X 95mm	1	34-0505	£0.86
PTR 50100020121G 2-Way PCB Screw Terminal Block 5.0mm 24A	2	50-1797	£0.29
470k Cr25 0.25w Cf Resistor - Pack of 100	2	62-0434	£0.65
4K7 16mm Linear Potentiometer	2	65-0710	£1.10
1n4148 Signal Diode 75v 150ma Minimum order 5	4	47-3416	£0.07
1uf 10% 63v 5mm Polyester Box Capacitor	2	10-3272	£0.44
Black Miniature Probe	2	17-0290	£0.55
Red Miniature Probe	2	17-0270	£0.55
11 x 2m Stranded Equipment Wire Pack	1	01-0108	£1.80
22m Single Core Wire Pack(11 x 2m Each)	1	01-0102	£2.32
3.5mm Stereo Plug to Plug Lead 1.2m	1	35-4474	£0.65
Total			£14.68

Calibrator/Signal Generator Parts List

Amazon Item	Qty
	1 3.5mm Stereo miniature jack socket
	1 Enclosure 152 x 82 x 50mm
	1 Stripboard 160 x 100 2.54mm Pitch
	4 Self-Tapping Screws No.4 6.5mm
	1 PCB Battery Holder A holder with wire leads can be adapted
	4 2-Way PCB Screw Terminal Block 5.0mm
	8 BC547 NPN Transistor
	1 5kΩ trimmer resistor
	1 Latching Push Switch
	1 5.6v Zener Diode
	6 1k Resistor
	1 4.7k Resistor
	1 2.2k Resistor
	3 18k Resistor
	2 100k Resistor
	2 33k Resistor
	2 270R Resistor
	1 Stranded Equipment Wire
	1 Single Core Wire

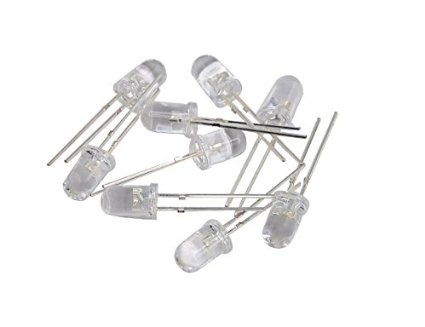

	1 5mm LED
	2 47nf capacitor
	1 100μf Electrolytic Capacitor
	2 4.7μf Electrolytic Capacitor
	2 1μF Capacitor
	1 9v Battery
	1 3.5mm audio jack lead male-male
	1 Heat Shrink Wire Wrap Cable Sleeve Tubing

Rapid Item	Qty	Rapid Code	Cost
3.5mm Stereo miniature jack socket	1	20-0133	£0.22
Hammond 1591XXDBK FRABS Enclosure 152 x 82 x 50mm Black	1	30-1839	£4.62
WR Rademacher 710-5 Copper Hard Paper Stripboard 160 x 100 x 1.5mm 2.54mm Pitch	1	50-5199	£2.40
Fixer Pozi Pan Head Self-Tapping Screws No.4 6.5mm - Pack Of 100	4	33-3150	----
1 X PP3 PCB Battery Holder	1	18-2990	£0.29
PTR 50100020121G 2-Way PCB Screw Terminal Block 5.0mm 24A	4	50-1797	£0.58
BC547B Diotec NPN Transistor TO92 0.2A 45V	8	50-0296	£0.18

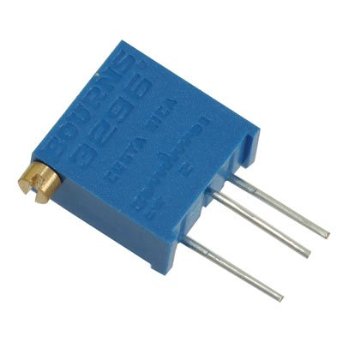

5k Wr3296x 10% 3/8 Cermet Trimmer Pot Side adjustment (4.7k)	1	68-1958	£0.33
Latching Red Push Switch	1	78-0115	£0.47
Bzx55c5v6 Zener Diode 0.5w Do35 5.6v	1	47-3854	£0.13
1k Cr25 0.25w Cf Resistor - Pack of 100	6	62-0370	£0.65
4k7 Cr25 0.25w Cf Resistor - Pack of 100	1	62-0386	£0.65

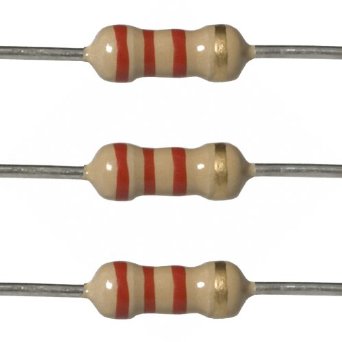

2k2 Cr25 0.25w Cf Resistor - Pack of 100	1	62-0378	£0.65
18k Cr25 0.25w Cf Resistor - Pack of 100	3	62-0400	£0.65
100k Cr25 0.25w Cf Resistor - Pack of 100	2	62-0418	£0.65

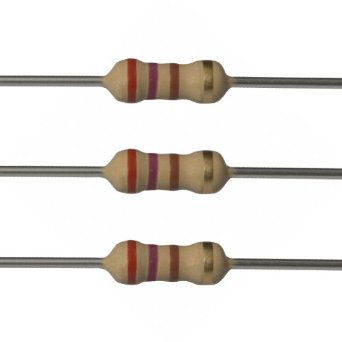

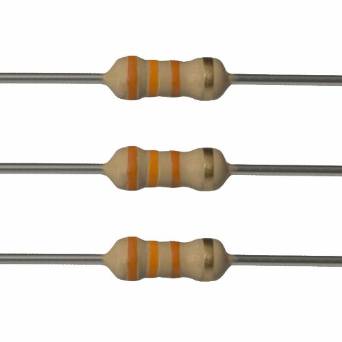

33k Cr25 0.25w Cf Resistor - Pack of 100	2	62-0406	£0.65
270r Cr25 0.25w Cf Resistor - Pack of 100	2	62-0356	£0.65
11 x 2m Stranded Equipment Wire Pack	1	01-0108	----
22m Single Core Wire Pack(11 x 2m Each)	1	01-0102	----
Kingbright L-7113SRC-C 5mm Super Bright Red LED 1000mcd	1	55-0130	£0.14
47nf 10% 100v 5mm Polyester Box Capacitor	2	10-3258	£0.13

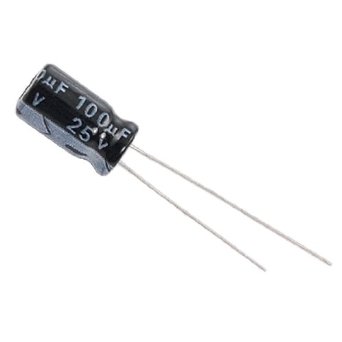

100uf 25v Low Imp Electrolytic Capacitor	1	11-2922	£0.10

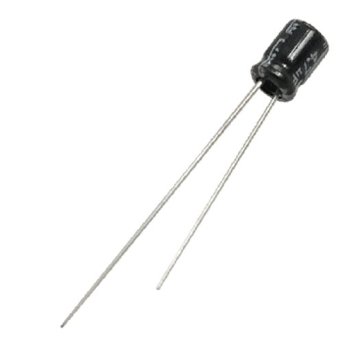

Forever 85°C 4.7U 63V Radial Lead Aluminium Electrolytic Capacitor	2	11-0215	£0.11
1uf 10% 63v 5mm Polyester Box Capacitor	2	10-3272	£0.44
PP3 Alkaline 9v battery	1		£1.00
3.5mm Stereo Plug to Plug Lead 1.2m	1	35-4474	£0.65
3.2mm X 1.2m Heat Shrink Sleeve Black	1	03-2342	£0.17
Total			£16.51

Electronics component suppliers in the United States

Element14
Jameco
Digi-Key
Ebay
Amazon

Electronics component suppliers in the United Kingdom

Rapid
Farnel - Element14
Maplin
Ebay
Amazon
