Touch the Soldering Iron To The Component

Learn to solder and create your dreams in electronics

See the full range of soldering irons and stations at Amazon

Download a pdf copy of this excellent soldering comic from mightyohm.com

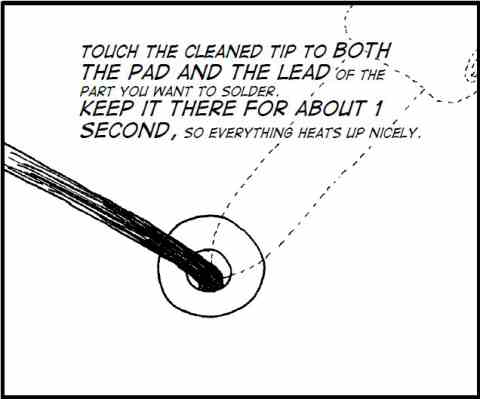

Touch the clean hot tip to pad and lead

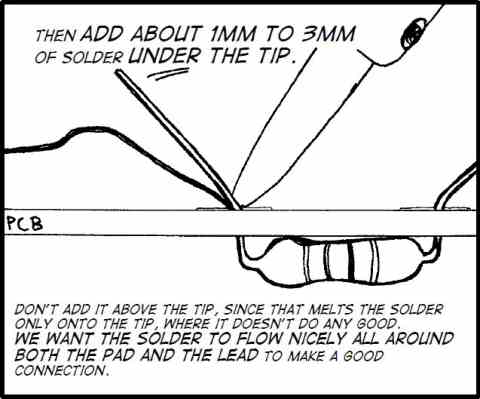

Add 1mm to 3mm solder under the iron tip

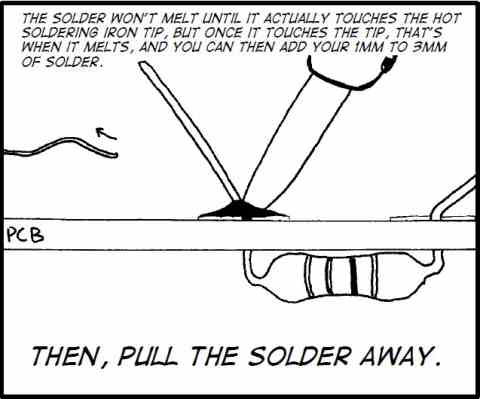

Solder melts when it touches the hot tip

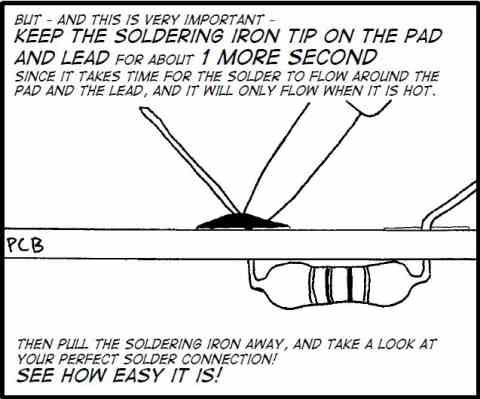

Keep the soldering iron on pad and lead for 1 second

Hold the soldering iron on the joint for about a second. Just long enough to allow the molten solder to flow around the components. Don't hold it there too long because you can overheat things. This can cause damage to components, bad joints and even lift the copper tracks away from the board.

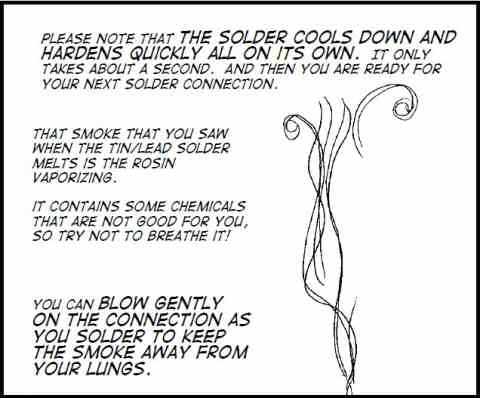

Flux smoke is harmful do not breath it in

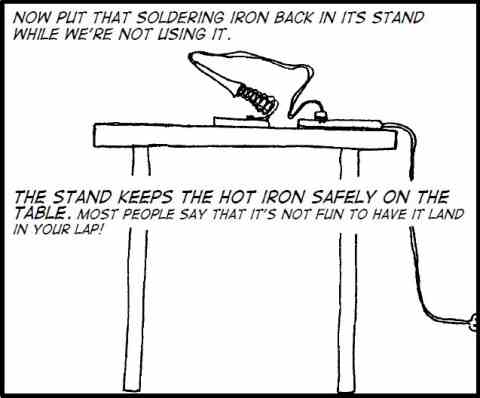

Replace soldering iron on stand



Now subscribe to our newsletter and don't miss a thing

Tagged: Tools Essential Tools Soldering Irons Soldering Station
